Assembling
|
Assembling |
|
| Thoroughly fighting with dust |
|

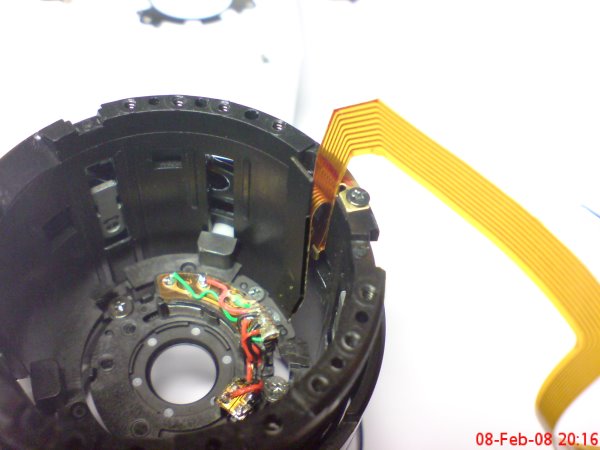

| Diaphragm is on the place |
|

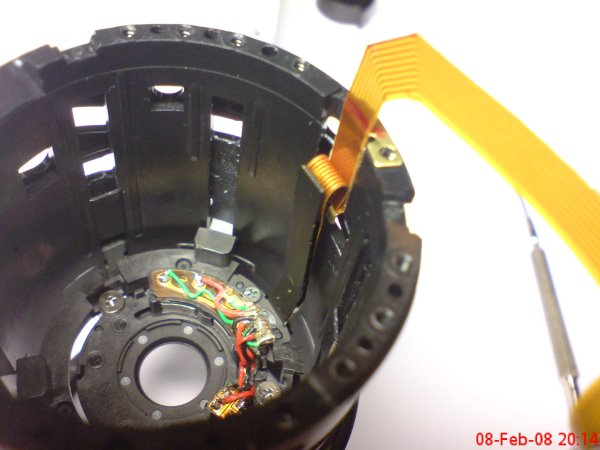

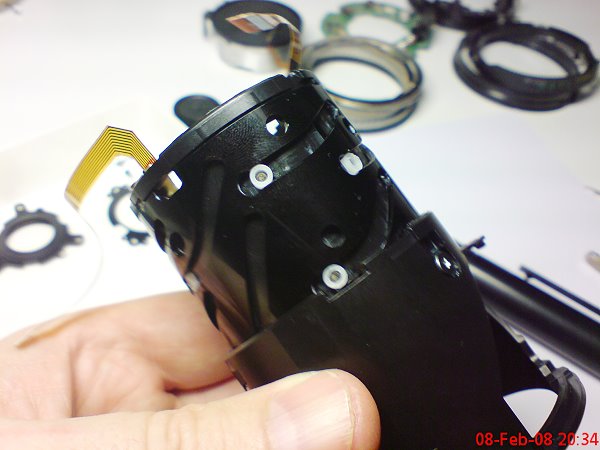

| Zoom is in one position |
|

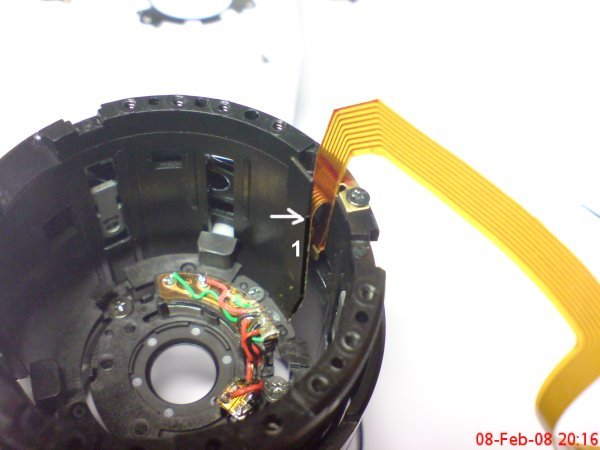

| Zoom is in other position. Look at the
loop |
|

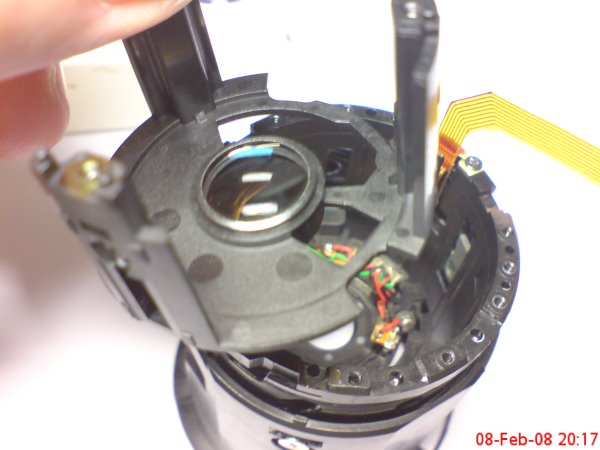

| Installing the next lens |
|
| Ready |
|
| Stabilizator. Shown in turn-off position. When stabilizator is
switching on, the motor
through the gear 1 moves the gear ring 2. The ring is turning. The teeth of the floating
lens 3 are going out of the contact with the ring and will be free in
the space 4. The lens assembly is flying in magnetic field of the
electric magnets, controlled by processor. |
|
| Stabilizator, the other side |
|
| Installed |
|

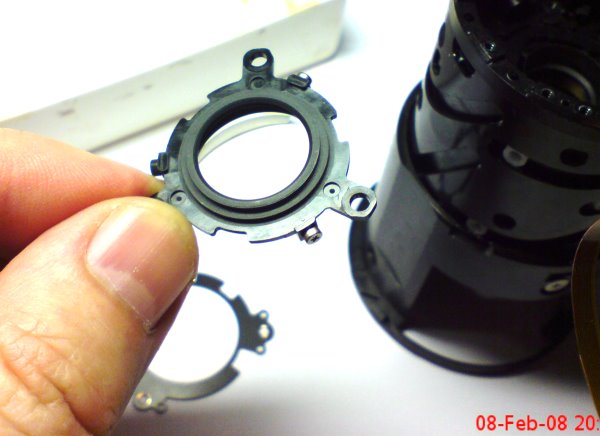

| Next lens (by the right side) |
|
| Covered by wash |
|
| Lenses are fixed |
|

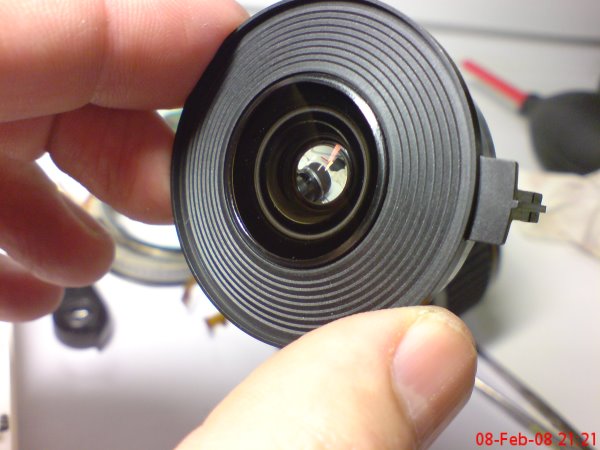

| Back lens |
|
| Installed |
|
| External barrel |
|
| Inside the external barrel |
|
| Focusing lens with driver lever |
|

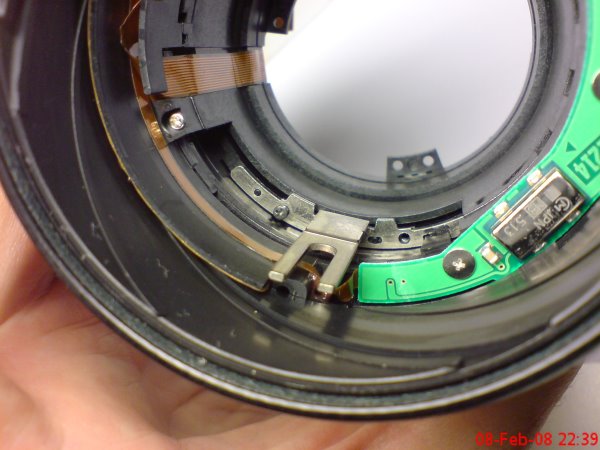

| Driver fork from USM-motor to focusing
lens |
|
| Distance scale |
|

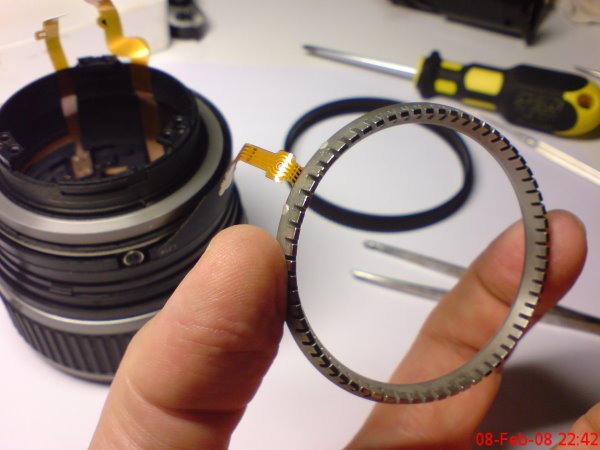

| USM stator |
|
| Stator, other side, with wave exciters |
|

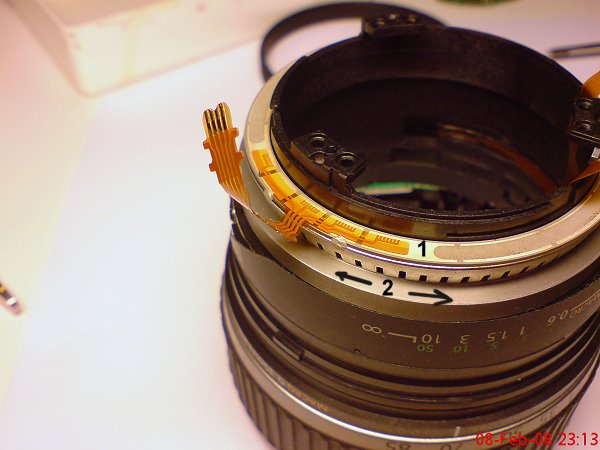

| Stator 1 is setting to motion armature 2.
Ring armature throughout the fork (above) is moving the focusing lens.
|
|
| In assembly |
|

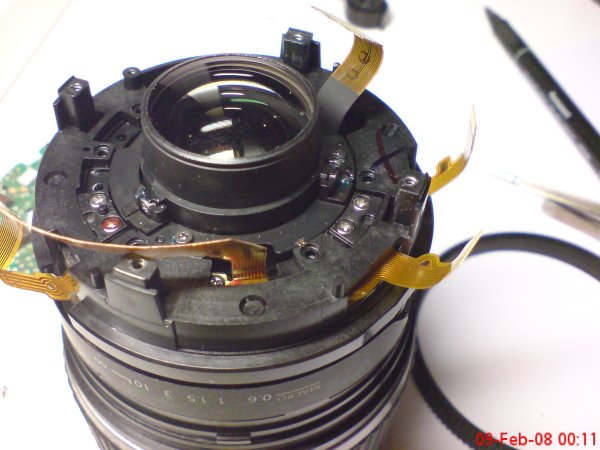

| Giving the attention to the front side |
|
| Zooming part |
|

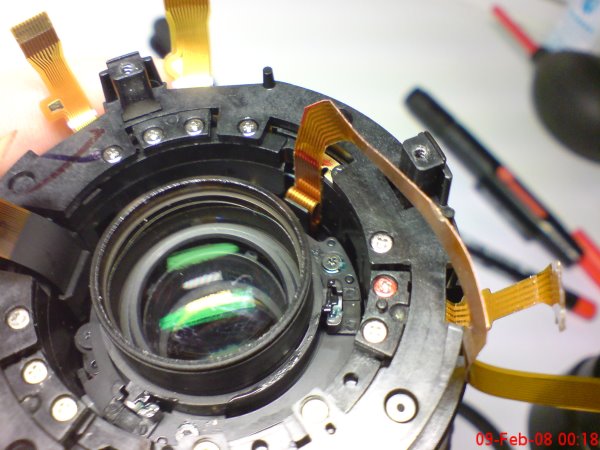

| Front lens keeper installed |
|

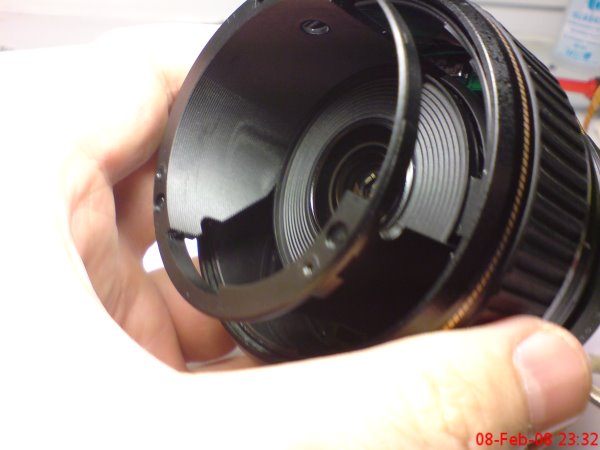

| Returning to the back |
|

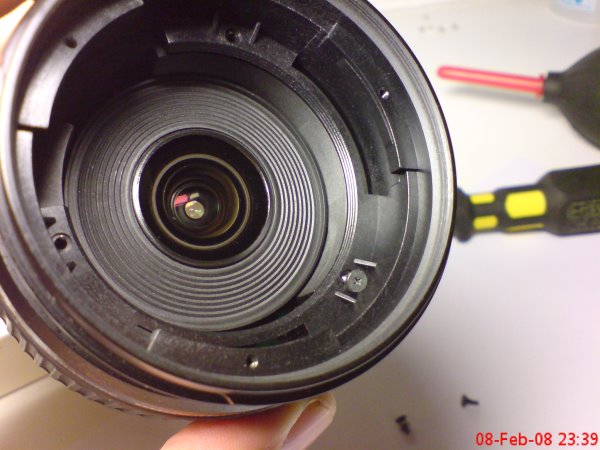

| Fixing zoom barrel |
|
| Ready |
|
| Looking at our conductor in one zoom position and ... |
|
| ....other |
|

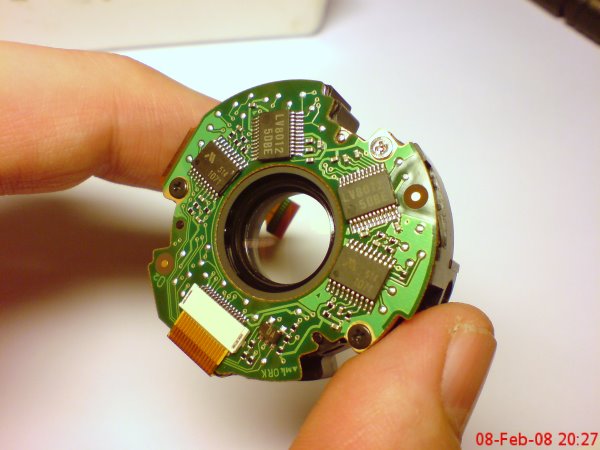

| Installation of the CPU plate |
|

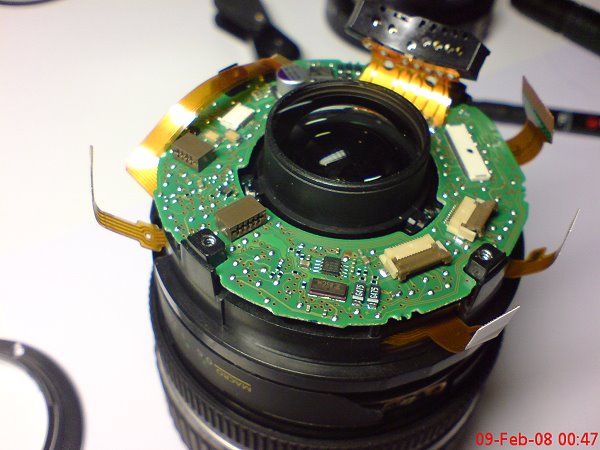

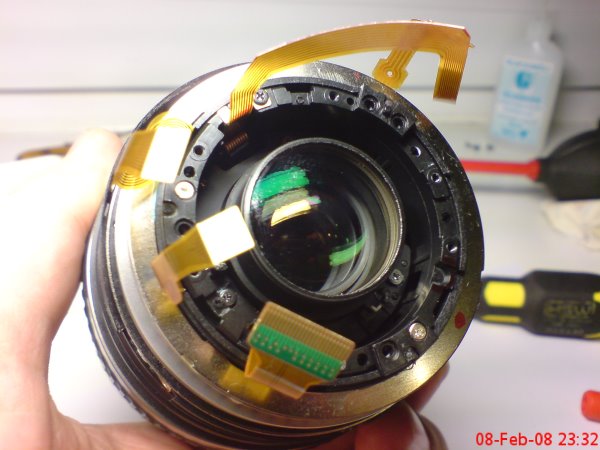

| Cables are connected |
|

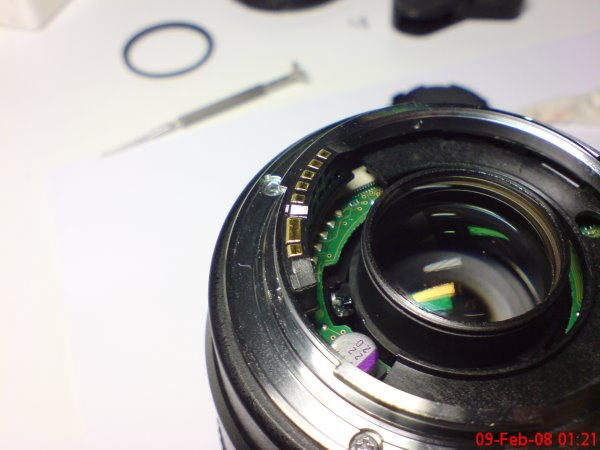

| Bayonet ring |
|

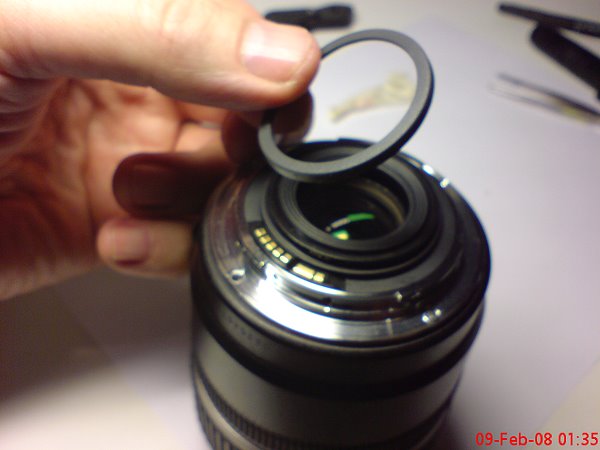

| Protection ring of the tail |
|
| Assembling of the front lens |
|
| Assembly is finished! Participants. Special
thanks- to Swiss chocolate SUCHARD! |
